Manufactured by Metakem, sold by Nano Cats GmbH

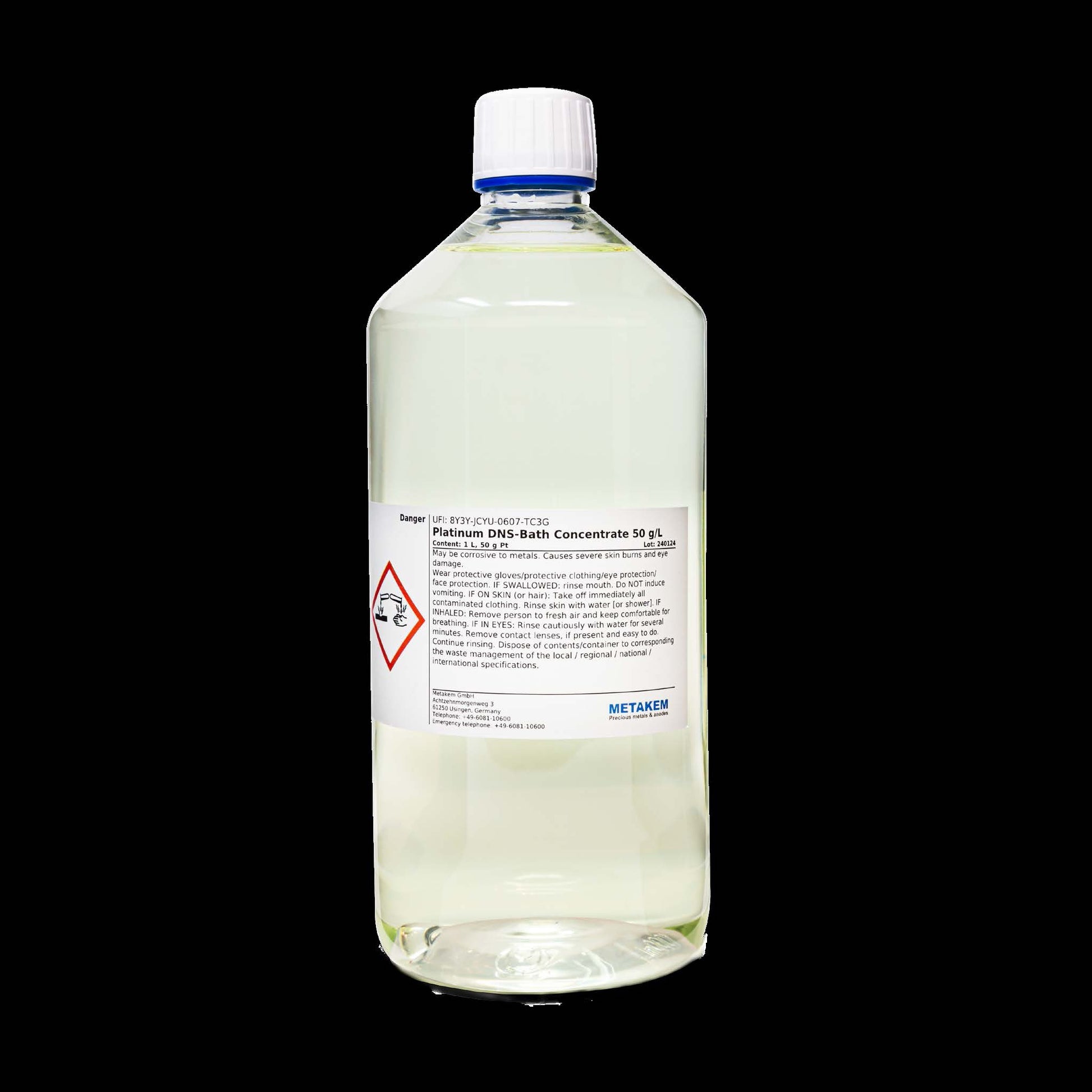

Platinum DNS Bath
Platinum DNS Bath
Regular price
€1.440,00 EUR
Regular price
Sale price
€1.440,00 EUR
Unit price
/
per
Couldn't load pickup availability
Platinum-DNS-Bath
A high-quality acidic platinum electrolyte for technical and decorative applications, producing bright, glossy, and hard layers.
| Property / Parameter | Value / Description |
|---|---|
| Bath Concentration | 10 g Pt / l (range: 6 – 15 g Pt/l) |
| pH Range | 1 – 2.5 |
| pH Adjustment | With KOH or H₂SO₄ |
| Temperature | 50 °C (range: 40 – 60 °C) |
| Voltage | 2 – 3 V |
| Bath Movement | 5 cm/s (range: 2 – 8 cm/s) |
| Cathodic Current Density | 0.3 – 1.5 A/dm² |
| Anode Materials | Pt-Niobium, Pt-Titanium, MOX-Titanium |
| Anode : Cathode Ratio | 1 : 1 |
| Deposition Rate | 1 μm / 30 min at 1 A/dm² |
| Cathodic Efficiency | 7 – 9 mg Pt / Amin |
Bath Properties
- Substrate materials: Nickel, Copper, Brass, Stainless Steel, Gold, Silver
- Additional suitable substrates after pretreatment: Titanium, Niobium, Tantalum, Molybdenum, Tungsten
- Contains sulfuric acid
- Acid resistant, regenerable with Platinum-DNS-Bath-R
Coating Properties
- Bright, glossy layer
- High adhesion
- Layer thickness up to 10 μm
- Hardness 500 – 700 HV
Bath Maintenance & Preparation
- The platinum content of the bath can be reduced to half the initial concentration without changingthe current yield, but should preferably be replenished after 30% platinum has been removed. Platinum DNS bath is supplemented with Platinum DNS Bath R (50 g Pt/l).
For every 1 g of platinum removed, 20 ml of Platinum DNS Bath R is added to the bath. - The delivered stock concentrate is stirred into approximately three times the amount of deionized water and then topped up to bath volume.
- Platinum DNA bath is supplied as a concentrate with 50 g Pt/l. Other concentrations available on request.
